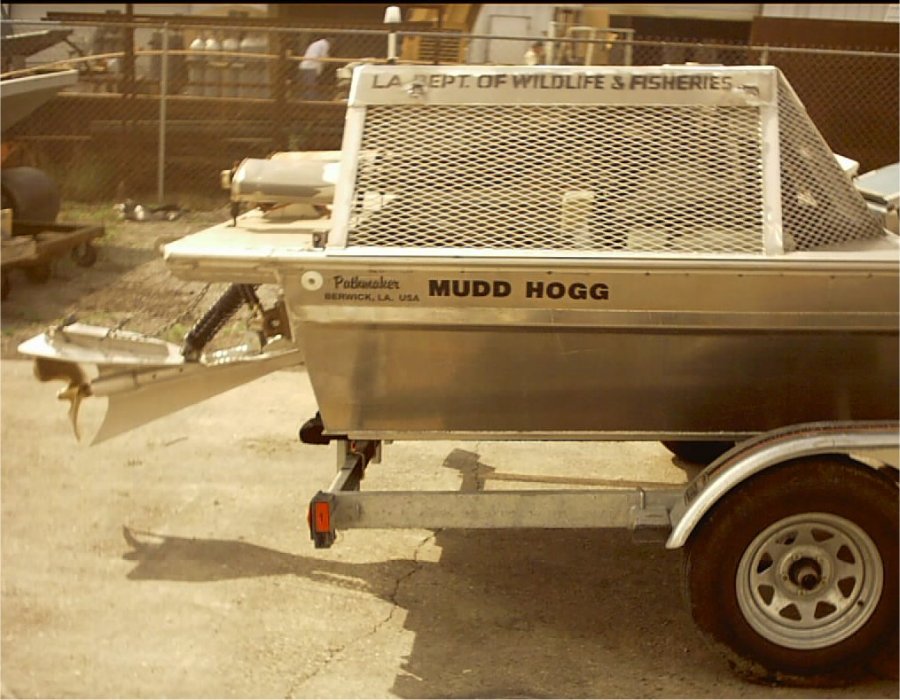

Mudd Hogg



Mudd Hogg Video 1

Mudd Hogg Video 2

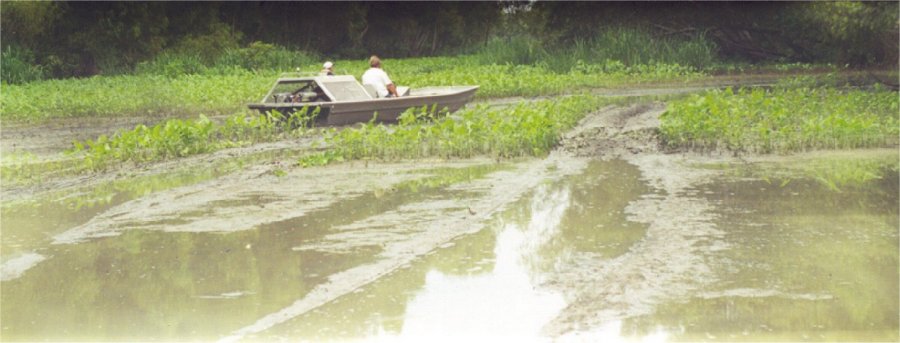

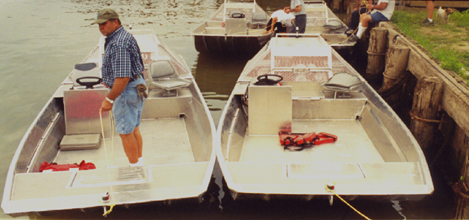

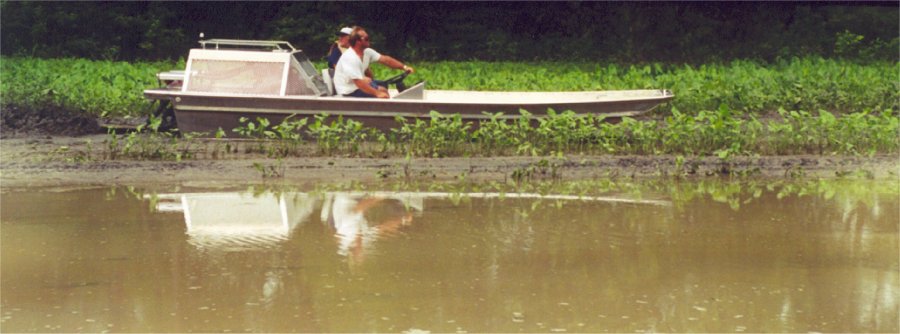

New Seismic Boat Built for Shallow Water



Specifications of boat shown here:
Size:
20' 0" Length
5' 0" Bottom Width
6' 6" Top Width
2' 0" Side Heigth

Materials:
Bottom: 3/16" 5052 Aluminum Alloy
Sides:3/16" 5052 Aluminum Alloy
Inside Double Bottom:
1/8" 5052 Aluminum Alloy

Keel Coolers:
1'x 3" Tubing 6061T6 Aluminum Alloy
Ribs:
1/4 x2"x 3"6061T- Aluminum Alloy
Gunnel Caps:
6061T6- Aluminum Alloy

Powered By:

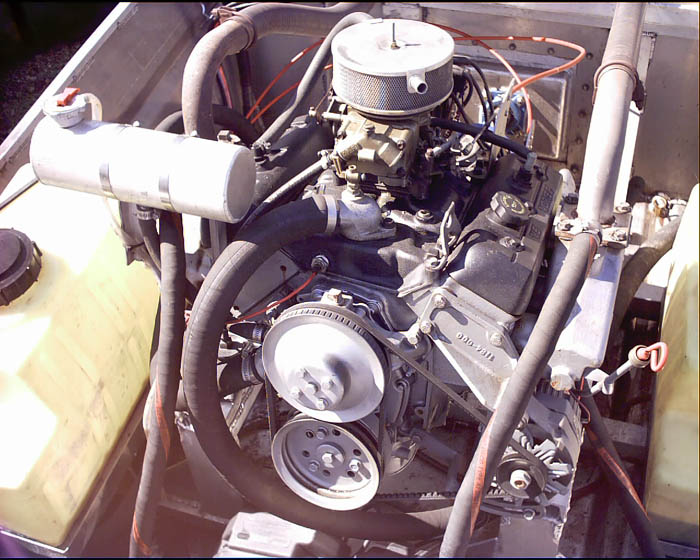

225 Horsepower V-6 Marine Engine
Holley 2 BBL Carburator
26 Gallon Fuel CapacityTeleFlex Marine Guages

Keel Cooled Closed Cooling System

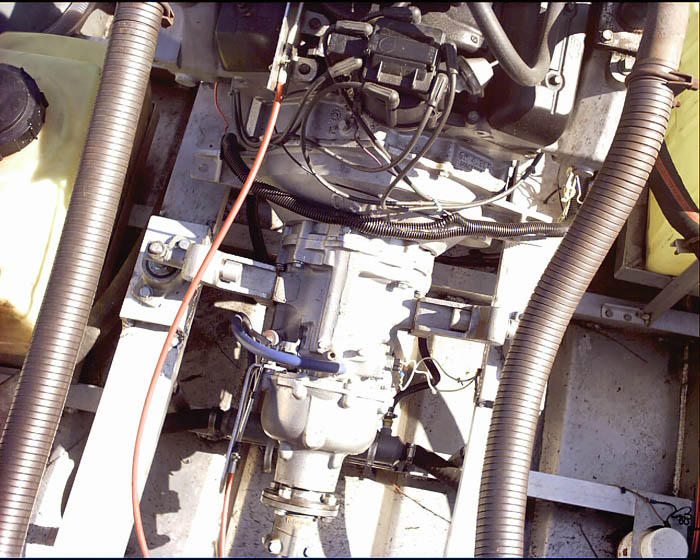

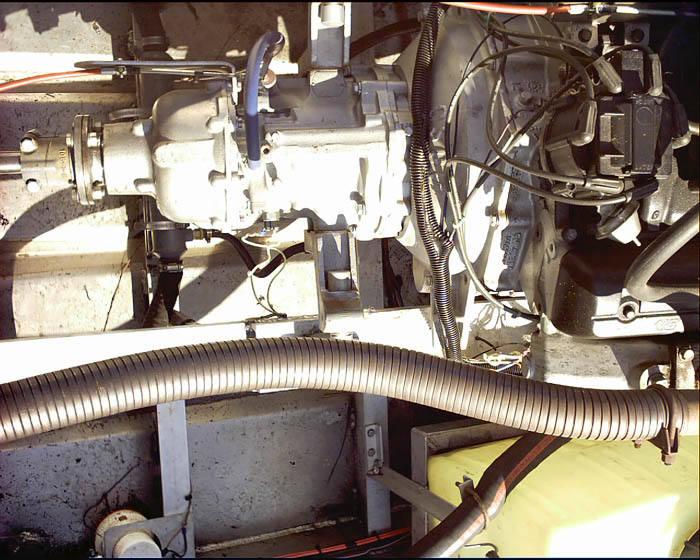

1.5 to 1 Velvet Marine Clutch
1-1/4" Stainless Shaft
15" x 15" Nibra Full Weedless Propeller

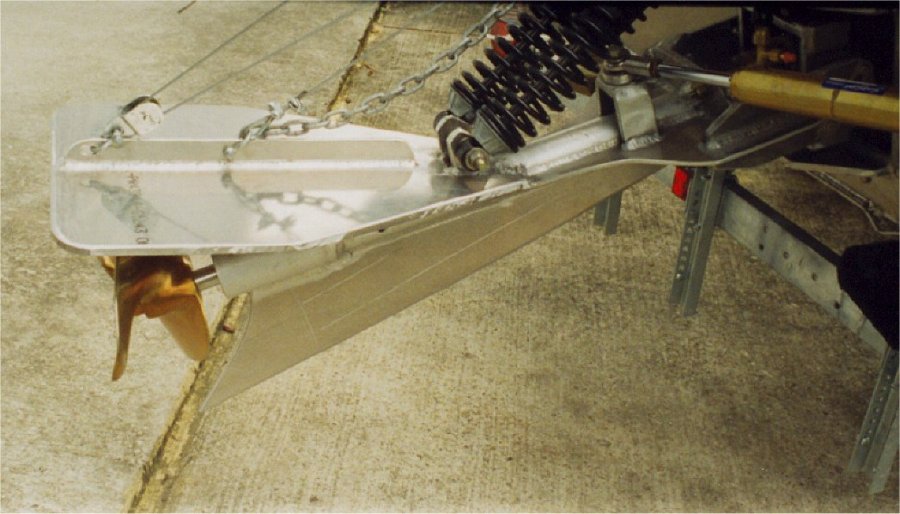

Outdrive:
Surface Drive Adjustable Depth Operating Range
Teleflex Sea Star Hydraulic Steering
37 MPH Approximate Top Speed

Payload:
1200 Pounds Approximately

Sizes:
Built to Customer Specifications

Optional Power:
4 Cylinder 188 Horsepower
V-6 225 HP Vortex Marine Engine
V-8 Small Block 310 HP thru 385 HP
V-8 Big Block 330 HP thru 502 HP
Diesel: Various Horsepowers
